SpringMVC教程(十五)
SSM框架整合
SSM框架整合，也就是我们常说的Spring+SpringMVC+MyBatis的整合。
在Spring5框架中，默认不支持Mybatis3进行直接的整合，需要依赖官方提供的插件mybatis-spring-xxx.jar
实例：
使用SSM框架实现一个用户登录和注册的小程序。

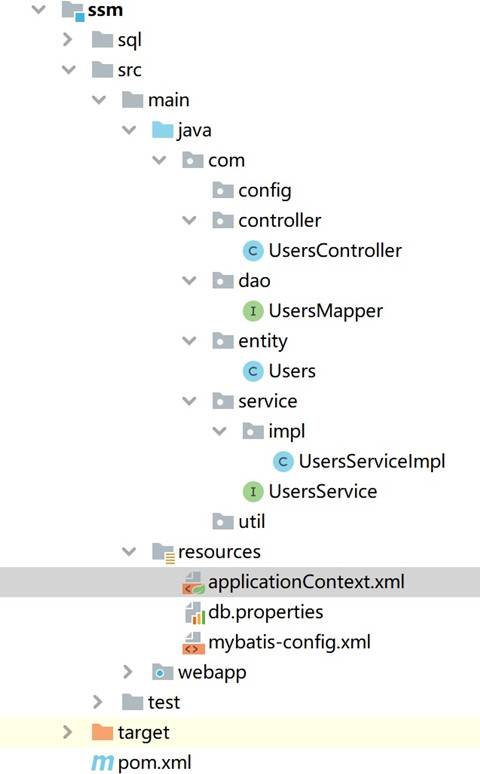

实现步骤： 1)项目整体结构图如下：
2)新建maven模块，pom.xml依赖如下：
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<spring.version>5.2.5.RELEASE</spring.version>
<servlet-version>4.0.1</servlet-version>
<junit.version>4.12</junit.version>
<lombok.version>1.18.12</lombok.version>
<jackson-versoin>2.13.2</jackson-versoin>
<mybatis.version>3.5.9</mybatis.version>
<mysql.version>8.0.21</mysql.version>
<druid.version>1.2.9</druid.version>
<mybatis-spring.version>2.0.7</mybatis-spring.version>
</properties>
<dependencies>
<!--添加mybatis的依赖-->
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>${mybatis.version}</version>
</dependency>
<!--添加MySQL的依赖-->
<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<!--druid数据库连接池-->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>${druid.version}</version>
</dependency>
<!--spring与mybatis整合用到的依赖很重要-->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>${mybatis-spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-core -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-context -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-web -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<!--必须添加事务相关的依赖-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>${servlet-version}</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>${junit.version}</version>
<scope>test</scope>
</dependency>
<!-- lombok依赖-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>${lombok.version}</version>
<scope>provided</scope>
</dependency>
<!--添加jackson依赖-->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>${jackson-versoin}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>${jackson-versoin}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-annotations</artifactId>
<version>${jackson-versoin}</version>
</dependency>
</dependencies>
3).在resource目录下创建db.properties和mybatis-config.xml db.properties
mysql.dataSource=com.alibaba.druid.pool.DruidDataSource
mysql.driver=com.mysql.cj.jdbc.Driver
mysql.url=jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC&characterEncoding=utf8&useUnicode=true&useSSL=false&allowPublicKeyRetrieval=true
mysql.username=root
mysql.password=root
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!-- 配置映射类的别名 -->
<typeAliases>
<package name="com.entity"/>
</typeAliases>
</configuration>
4)在com.entity包下创建Users实体类。
package com.entity;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;
@Data
@NoArgsConstructor
@AllArgsConstructor
public class Users implements Serializable, Cloneable {
private int uid;
private String username;
private String password;
private String email; //电子邮箱
private String gender; //性别
private int education; //学历
private String birthday; //生日
private String[] favorites; //爱好；
private String introduce; //自我介绍
private String province; //籍贯
private String accept; //是否接受协议
}
5).在com.dao包下创建UsersMapper.java
package com.dao;
import com.entity.Users;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Options;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;
public interface UsersMapper {
@Insert("insert into users (username,password,gender,email,birthday,education,introduce,province) values (#{username},#{password},#{gender},#{email},#{birthday},#{education},#{introduce},#{province})")
@Options(useGeneratedKeys=true,keyProperty = "uid", keyColumn = "uid")
public int reg(Users user); //用户注册
@Select("select * from users where username=#{uname} and password=#{upass}")
public Users login(@Param("uname") String username, @Param("upass") String password);
}
6).在resource下创建applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!-- 注册HandlerMapper、HandlerAdapter两个映射类 -->
<mvc:annotation-driven />
<!-- 访问静态资源 -->
<mvc:default-servlet-handler/>
<context:property-placeholder location="classpath:db.properties" />
<!-- 使用扫描机制扫描控制器类，控制器类都在controller包及其子包下 -->
<context:component-scan base-package="com"/>
<!-- 配置数据源,注意里面所有的属性的名字都是固定的写法。 -->
<bean id="dataSource" class="${mysql.dataSource}">
<property name="Username" value="${mysql.username}"/>
<property name="Password" value="${mysql.password}"/>
<property name="DriverClassName" value="${mysql.driver}"/>
<property name="Url" value="${mysql.url}"/>
</bean>
<!--配置sessionFactorybean -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml" />
</bean>
<!--注入usersMapper Bean-->
<bean id="usersMapper" class="org.mybatis.spring.mapper.MapperFactoryBean">
<property name="mapperInterface" value="com.dao.UsersMapper"/>
<property name="sqlSessionFactory" ref="sqlSessionFactory"/>
</bean>
<!--视图解析器-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver" >
<!--前缀-->
<property name="prefix" value="/WEB-INF/html/"/>
<!--后缀-->
<property name="suffix" value=".html"/>
</bean>
<!-- 事务管理器，依赖于数据源 -->
<bean id="txManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 注册事务管理驱动 -->
<tx:annotation-driven transaction-manager="txManager"/>
</beans>
7).在com.service包下创建UsersService和在impl包下创建UsersServiceImpl UsersService.java
package com.service;
import com.entity.Users;
public interface UsersService {
public boolean reg(Users user) throws Exception;
public Users login(String username,String password);
}
UsersServiceImpl.java
package com.service.impl;
import com.dao.UsersMapper;
import com.entity.Users;
import com.service.UsersService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
@Service
public class UsersServiceImpl implements UsersService {
@Resource
private UsersMapper usersMapper;
@Transactional(rollbackFor = Exception.class)
@Override
public boolean reg(Users user) throws Exception {
try {
usersMapper.reg(user);
return true;
} catch (Exception ex) {
ex.printStackTrace();
//手动回滚。
TransactionAspectSupport.currentTransactionStatus().setRollbackOnly();
return false;
}
}
@Override
public Users login(String username, String password) {
return usersMapper.login(username, password);
}
}
8).创建名字为mybatis的数据库，导入以下SQL脚本。
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for users
-- ----------------------------
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
`uid` int NOT NULL AUTO_INCREMENT,
`username` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`password` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`gender` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`email` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`education` int NULL DEFAULT NULL,
`birthday` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`introduce` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
`province` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL,
PRIMARY KEY (`uid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_bin ROW_FORMAT = Dynamic;
-- ----------------------------
-- Records of users
-- ----------------------------
INSERT INTO `users` VALUES (1, 'zhangsan', '123456', '男', 'zhangsan@qq.com', 1, '2001-10-10', '帅哥', '陕西');
INSERT INTO `users` VALUES (2, '宝宝', '654321', '女', 'baobao@126.com', 2, '2001-10-10', '美女', '陕西');
INSERT INTO `users` VALUES (5, '宋小宝', '123456', '男', 'simoniu77@gmail.com', 5, '2007-12-12', '夜黑', '河南');
SET FOREIGN_KEY_CHECKS = 1;
9).在WEB-INF/html/下创建login.html和reg.html视图页面。

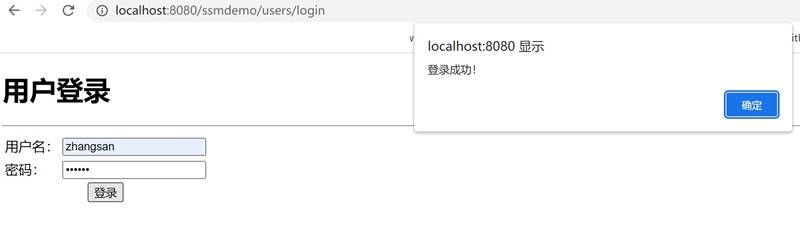

login.html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>用户登录</title>
<script src="https://cdn.bootcdn.net/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
</head>
<body>
<h1>用户登录</h1>
<hr>
<div>
<form id="regForm" action="#" method="post">
<table>
<tr>
<td class="title">用户名：</td>
<td><input type="text" id="username" name="username"/></td>
</tr>
<tr>
<td class="title">密码：</td>
<td><input type="password" id="password" name="password"/></td>
</tr>
<tr>
<td colspan="2" style="text-align: center">
<button type="button" onclick="doLogin()">登录</button>
</td>
</tr>
</table>
</form>
</div>
<script>
function doLogin() {
let username = $("#username").val();
let password = $("#password").val();
console.log('执行用户登录,username='+username+",password="+password);
//发送ajax请求
$.ajax({
url: 'http://localhost:8080/ssmdemo/users/auth?username='+username+'&password='+password,
type: 'get',
async: true,
success: function (resp) {
console.log(resp);
if(resp.code===200){
console.log("登录成功用户："+JSON.stringify(resp.data));
alert('登录成功！');
}else{
alert("登录失败！");
}
}
});
}
</script>
</body>
</html>
reg.html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>用户注册</title>
<script src="https://cdn.bootcdn.net/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
</head>
<body>
<h1>用户注册</h1>
<hr>
<div>
<form id="regForm" action="#" method="post">
<table>
<tr>
<td class="title">用户名：</td>
<td><input type="text" name="username"/></td>
</tr>
<tr>
<td class="title">密码：</td>
<td><input type="password" name="password"/></td>
</tr>
<tr>
<td class="title">确认密码：</td>
<td><input type="password" name="confirmpass"/></td>
</tr>
<tr>
<td class="title">电子邮箱：</td>
<td><input type="text" name="email"/></td>
</tr>
<tr>
<td class="title">性别：</td>
<td><input type="radio" value="男" name="gender" checked/>男<input type="radio" value="女" name="gender"/>女
</td>
</tr>
<tr>
<td class="title">学历：</td>
<td>
<select name="education">
<option value="-1" selected>-----请选择-----</option>
<option value="0">文盲</option>
<option value="1">小学</option>
<option value="2">初中</option>
<option value="3">高中</option>
<option value="4">大专</option>
<option value="5">本科</option>
<option value="6">硕士</option>
<option value="7">博士</option>
<option value="8">博士后</option>
<option value="9">圣斗士</option>
</select>
</td>
</tr>
<tr>
<td class="title">籍贯：</td>
<td>
<input list="province" name="province" value=""/>
<datalist id="province">
<option value="河北">
<option value="河南">
<option value="山东">
<option value="山西">
<option value="陕西">
</datalist>
</td>
</tr>
<tr>
<td class="title">出生日期：</td>
<td><input type="date" name="birthday" value=""/></td>
</tr>
<tr>
<td class="title">爱好：</td>
<td>
<!--复选框name名字必须一样-->
<input type="checkbox" name="favorites" value="read"/>读书
<input type="checkbox" name="favorites" value="music"/>音乐
<input type="checkbox" name="favorites" value="internet"/>上网
<input type="checkbox" name="favorites" value="nba"/>NBA
</td>
</tr>
<tr>
<td class="title">自我介绍：</td>
<td><textarea rows="10" cols="25" name="introduce"></textarea></td>
</tr>
<tr>
<td class="title">上传照片：</td>
<td><input type="file" name="pic"/></td>
</tr>
<tr>
<td class="title">是否接受条款：</td>
<td><input type="checkbox" name="accept"/>我无条件接受霸王条款</td>
</tr>
<tr>
<td colspan="2" align="center">
<button type="button" onclick="doReg()">注册</button>
<input type="reset" value="重置"/></td>
</tr>
</table>
</form>
</div>
<script>
//jquery的表单转json的方法
$.fn.parseForm = function () {
var serializeObj = {};
var array = this.serializeArray();
var str = this.serialize();
$(array).each(function () {
if (serializeObj[this.name]) {
if ($.isArray(serializeObj[this.name])) {
serializeObj[this.name].push(this.value);
} else {
serializeObj[this.name] = [serializeObj[this.name], this.value];
}
} else {
serializeObj[this.name] = this.value;
}
});
return serializeObj;
};
function doReg() {
var param = $("#regForm").parseForm();
console.log(JSON.stringify(param));
//发送ajax请求
$.ajax({
url: 'http://localhost:8080/ssmdemo/users/save',
data: JSON.stringify(param),
type: 'post',
contentType: 'application/json', //注意这里必须添加contentType: 'application/json'
async: false,
success: function (resp) {
console.log(resp);
if(resp.code===200){
alert("注册成功！");
}else{
alert("注册失败！");
}
}
});
}
</script>
</body>
</html>
10).在com.controller下创建UsersController.java
package com.controller;
/*
* 专门用来处理用户业务逻辑的控制器
* */
import com.entity.Users;
import com.service.UsersService;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import java.util.HashMap;
import java.util.Map;
@Controller
@RequestMapping("users") //表示这里所有的动作都是处理用户业务逻辑请求的。
public class UsersController {
@Resource
private UsersService usersService;
//跳转到用户登录页面
@GetMapping("login")
public String login(){
return "login";
}
//跳转到用户注册页面
@GetMapping("reg")
public String reg(){
return "reg";
}
//保存用户资料
@PostMapping(value="save")
@ResponseBody
public Map<String,Object> add(@RequestBody Users user){
Map<String,Object> result = new HashMap<String,Object>();
System.out.println("执行用户注册或者添加新用户....");
System.out.println("注册用户资料："+user);
try{
if(usersService.reg(user)){
result.put("code", 200);
result.put("msg", "注册成功！");
return result;
}
result.put("code", 400);
result.put("msg", "注册失败！");
return result;
}catch(Exception ex){
ex.printStackTrace();
result.put("code",400);
result.put("msg","注册出现异常！");
return result;
}
}
//用户登录
@RequestMapping("auth")
@ResponseBody
public Map<String,Object> auth(String username,String password){
Map<String,Object> result = new HashMap<String,Object>();
Users loginUser = null;
try{
loginUser= usersService.login(username,password);
if(loginUser!=null) {
result.put("code", 200);
result.put("msg", "登录成功！");
result.put("data",loginUser);
return result;
}
result.put("code", 400);
result.put("msg", "登录失败！");
return result;
}catch(Exception ex){
ex.printStackTrace();
result.put("code",400);
result.put("msg","登录出现异常！");
return result;
}
}
}
部署项目测试运行。
项目启动后访问 http://localhost:8080/ssmdemo/users/login，测试登录效果如下：

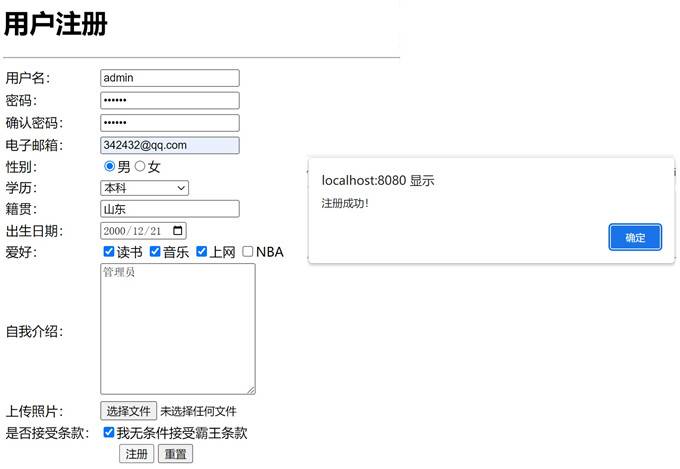

访问 http://localhost:8080/ssmdemo/users/reg，测试注册效果如下：
