OpenCV实现简易视频播放器
OpenCV实现简易视频播放器
OpenCV实现简易视频播放器
实现代码：
import cv2
import numpy as np
import tkinter as tk
from tkinter import filedialog
class VideoPlayer:
def __init__(self, root):
self.root = root
self.root.title("简易视频播放器")
# 禁用窗口的最大化按钮
self.root.resizable(False, False)
# 视频相关变量
self.video_path = None
self.cap = None
self.playing = False
self.paused = False
self.frame_count = 0
self.current_frame = 0
self.fps = 0
self.frame_delay = 0
self.video_loaded = False # 用于标记视频是否已加载
# 创建UI
self.create_widgets()
def create_widgets(self):
# 视频显示区域
self.video_frame = tk.Frame(self.root, bg="black")
self.video_frame.pack(fill=tk.BOTH, expand=True, padx=10, pady=0)
self.canvas = tk.Canvas(self.video_frame, bg="black")
self.canvas.pack(fill=tk.BOTH, expand=True)
# 控制面板
self.control_panel = tk.Frame(self.root)
self.control_panel.pack(fill=tk.X, padx=10, pady=10)
# 按钮
self.open_button = tk.Button(self.control_panel, text="打开视频", command=self.open_video)
self.open_button.pack(side=tk.LEFT, padx=5)
self.play_pause_button = tk.Button(self.control_panel, text="播放", command=self.toggle_play_pause)
# 初始时隐藏播放/暂停按钮
self.play_pause_button.pack_forget()
self.stop_button = tk.Button(self.control_panel, text="停止", command=self.stop_video)
# 初始时隐藏停止按钮
self.stop_button.pack_forget()
# 进度条
self.progress_var = tk.DoubleVar()
self.progress_bar = tk.Scale(self.control_panel, variable=self.progress_var,
from_=0, to=100, orient=tk.HORIZONTAL,
command=self.seek_video)
self.progress_bar.pack(side=tk.LEFT, fill=tk.X, expand=True, padx=5)
# 进度条百分比标签
self.progress_percent_var = tk.StringVar()
self.progress_percent_label = tk.Label(self.control_panel, textvariable=self.progress_percent_var, width=5)
self.progress_percent_label.pack(side=tk.LEFT, padx=5)
# 信息显示
self.info_var = tk.StringVar()
self.info_label = tk.Label(self.root, textvariable=self.info_var, anchor=tk.W)
self.info_label.pack(fill=tk.X, padx=10)
def open_video(self):
# 打开文件对话框选择视频
self.video_path = filedialog.askopenfilename(
title="选择视频文件",
filetypes=[("视频文件", "*.mp4 *.avi *.mov *.mkv")]
)
if self.video_path:
# 打开视频
self.cap = cv2.VideoCapture(self.video_path)
# 获取视频信息
self.frame_count = int(self.cap.get(cv2.CAP_PROP_FRAME_COUNT))
self.fps = self.cap.get(cv2.CAP_PROP_FPS)
self.frame_delay = int(1000 / self.fps) if self.fps > 0 else 30
# 读取第一帧
ret, frame = self.cap.read()
if ret:
# 获取视频原始尺寸
original_height, original_width = frame.shape[:2]
# 计算缩放尺寸，确保宽度不超过800像素
max_width = 800
max_height = 600 # 限制最大高度
if original_width > max_width or original_height > max_height:
# 计算缩放比例
width_ratio = max_width / original_width
height_ratio = max_height / original_height
scale_ratio = min(width_ratio, height_ratio)
display_width = int(original_width * scale_ratio)
display_height = int(original_height * scale_ratio)
else:
display_width = original_width
display_height = original_height
# 设置窗口大小
self.root.geometry(f"{display_width}x{display_height + 80}") # 80为控制面板和其他元素的高度
# 显示第一帧
self.current_frame = 1
self.progress_var.set((self.current_frame / self.frame_count) * 100)
self.progress_percent_var.set(f"{int((self.current_frame / self.frame_count) * 100)}%")
self.show_frame(frame)
# 更新UI
self.info_var.set(
f"视频: {self.video_path.split('/')[-1]} | 帧数: {self.frame_count} | FPS: {self.fps:.2f}")
# 自动播放
self.video_loaded = True
self.play_pause_button.pack(side=tk.LEFT, padx=5)
self.stop_button.pack(side=tk.LEFT, padx=5)
self.play_video()
def toggle_play_pause(self):
if not self.video_loaded or self.cap is None:
return
if not self.playing:
self.play_video()
else:
self.pause_video()
def play_video(self):
if self.cap is None or self.playing:
return
self.playing = True
self.paused = False
self.play_pause_button.config(text="暂停")
# 在UI线程中播放视频
self.play_loop()
def play_loop(self):
if self.playing and not self.paused and self.cap.isOpened():
ret, frame = self.cap.read()
if ret:
self.current_frame += 1
# 更新进度条
progress_percent = (self.current_frame / self.frame_count) * 100
self.progress_var.set(progress_percent)
self.progress_percent_var.set(f"{int(progress_percent)}%")
# 显示帧
self.show_frame(frame)
# 控制播放速度
self.root.after(self.frame_delay, self.play_loop)
else:
self.stop_video()
def pause_video(self):
if self.cap is not None and self.playing:
self.paused = True
self.playing = False
self.play_pause_button.config(text="播放")
def stop_video(self):
if self.cap is not None:
self.playing = False
self.paused = False
self.play_pause_button.config(text="播放")
self.cap.release()
self.cap = None
self.video_loaded = False
self.current_frame = 0
self.progress_var.set(0)
self.progress_percent_var.set("0%")
self.info_var.set("视频已停止")
self.canvas.delete("all")
# 隐藏播放和停止按钮
self.play_pause_button.pack_forget()
self.stop_button.pack_forget()
def seek_video(self, value):
if self.cap is not None:
frame_number = int((float(value) / 100) * self.frame_count)
self.cap.set(cv2.CAP_PROP_POS_FRAMES, frame_number)
ret, frame = self.cap.read()
if ret:
self.show_frame(frame)
self.current_frame = frame_number + 1 # 因为set后读取的是该帧
self.progress_var.set((self.current_frame / self.frame_count) * 100)
self.progress_percent_var.set(f"{int((self.current_frame / self.frame_count) * 100)}%")
def show_frame(self, frame):
# 转换颜色空间 (BGR to RGB)
frame = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
# 调整帧大小以适应窗口
canvas_width = self.canvas.winfo_width()
canvas_height = self.canvas.winfo_height()
if canvas_width > 0 and canvas_height > 0:
height, width = frame.shape[:2]
aspect_ratio = width / height
# 计算新的宽度和高度，确保视频保持原始宽高比
if aspect_ratio > 1: # 横屏视频
new_width = canvas_width
new_height = int(new_width / aspect_ratio)
if new_height > canvas_height:
new_height = canvas_height
new_width = int(new_height * aspect_ratio)
else: # 竖屏视频
new_height = canvas_height
new_width = int(new_height * aspect_ratio)
if new_width > canvas_width:
new_width = canvas_width
new_height = int(new_width / aspect_ratio)
# 缩放帧
frame = cv2.resize(frame, (new_width, new_height))
# 使用 PIL 处理图像
from PIL import Image, ImageTk
image = Image.fromarray(frame)
self.photo = ImageTk.PhotoImage(image)
# 在Canvas上显示图像
self.canvas.delete("all") # 清空画布
self.canvas.create_image(0, 0, image=self.photo, anchor=tk.NW)
# 计算居中显示的位置
canvas_width = self.canvas.winfo_width()
canvas_height = self.canvas.winfo_height()
image_width = self.photo.width()
image_height = self.photo.height()
x_offset = (canvas_width - image_width) // 2
y_offset = (canvas_height - image_height) // 2
# 重新绘制图像以居中显示
self.canvas.create_image(x_offset, y_offset, image=self.photo, anchor=tk.NW)
def run(self):
self.root.mainloop()
if __name__ == "__main__":
root = tk.Tk()
app = VideoPlayer(root)
app.run()

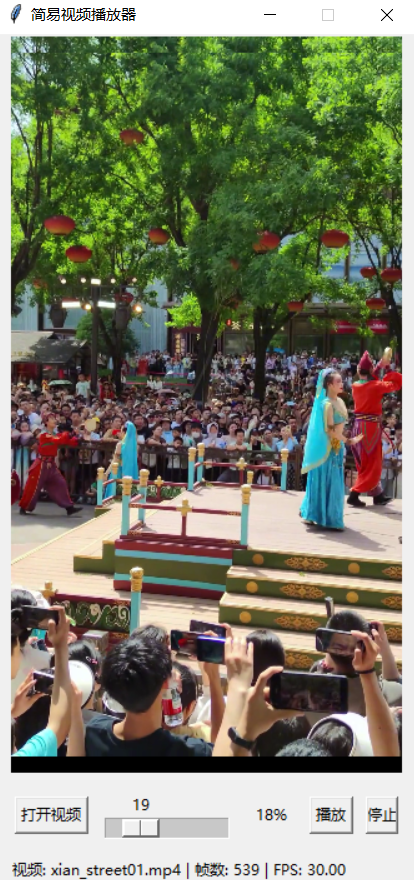

运行效果：
