Mediapipe 是谷歌出品的一种开源框架，旨在为开发者提供一种简单而强大的工具，用于实现各种视觉和感知应用程序。它包括一系列预训练的机器学习模型和用于处理多媒体数据的工具，可以用于姿势估计、手部追踪、人脸检测与跟踪、面部标志、对象检测、图片分割和语言检测等任务。Mediapipe 是支持跨平台的，可以部署在手机端(Android, iOS), web, desktop, edge devices, IoT 等各种平台，编程语言也支持C++, Python, Java, Swift, Objective-C, Javascript等主流语言。
1.MediaPipe概述
MediaPipe 是一款由 Google Research 开发并开源的多媒体机器学习模型应用框架。 github 地址：https://github.com/google/mediapipe

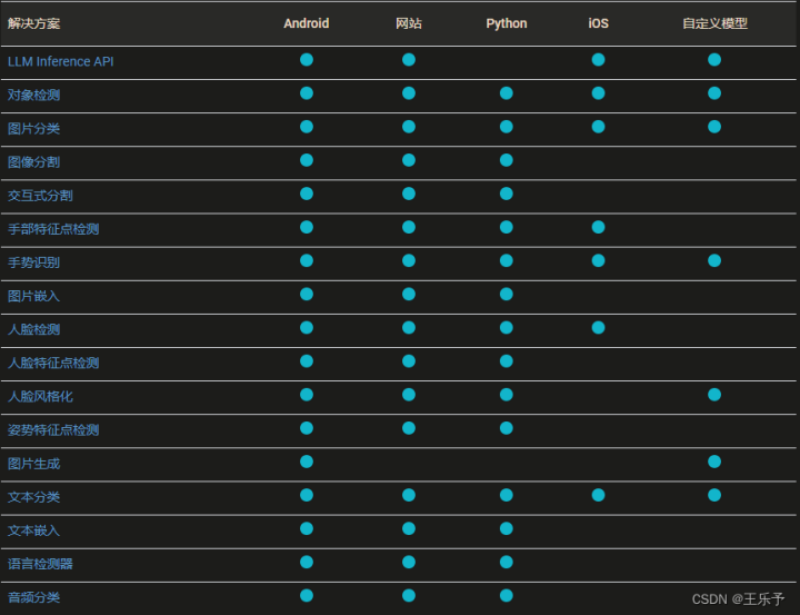

MediaPipe目前支持的解决方案(Solution)及支持的平台如下图所示：
2.姿势估计

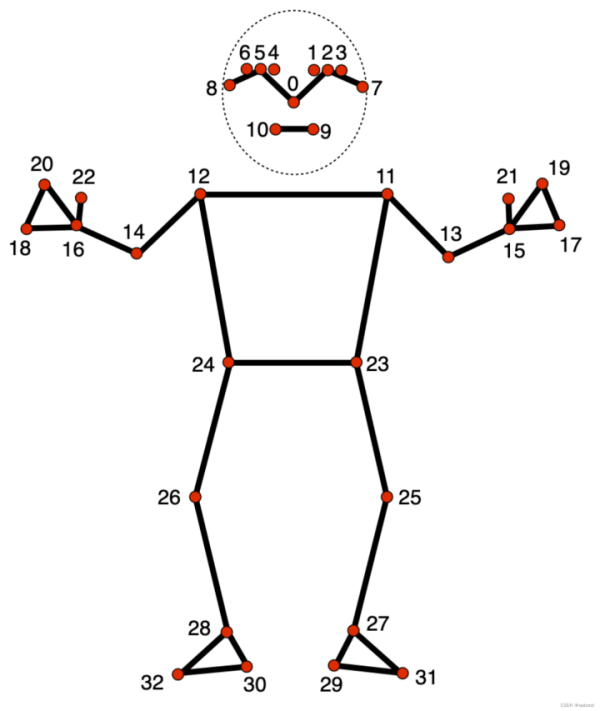

序号 部位 Pose Landmark
--------------------------------------------------
0 鼻子 PoseLandmark.NOSE
1 左眼（内侧） PoseLandmark.LEFT_EYE_INNER
2 左眼 PoseLandmark.LEFT_EYE
3 左眼（外侧） PoseLandmark.LEFT_EYE_OUTER
4 右眼（内侧） PoseLandmark.RIGHT_EYE_INNER
5 右眼 PoseLandmark.RIGHT_EYE
6 右眼（外侧） PoseLandmark.RIGHT_EYE_OUTER
7 左耳 PoseLandmark.LEFT_EAR
8 右耳 PoseLandmark.RIGHT_EAR
9 嘴巴（左侧） PoseLandmark.MOUTH_LEFT
10 嘴巴（右侧） PoseLandmark.MOUTH_RIGHT
11 左肩 PoseLandmark.LEFT_SHOULDER
12 右肩 PoseLandmark.RIGHT_SHOULDER
13 左肘 PoseLandmark.LEFT_ELBOW
14 右肘 PoseLandmark.RIGHT_ELBOW
15 左腕 PoseLandmark.LEFT_WRIST
16 右腕 PoseLandmark.RIGHT_WRIST
17 左小指 PoseLandmark.LEFT_PINKY
18 右小指 PoseLandmark.RIGHT_PINKY
19 左食指 PoseLandmark.LEFT_INDEX
20 右食指 PoseLandmark.RIGHT_INDEX
21 左拇指 PoseLandmark.LEFT_THUMB
22 右拇指 PoseLandmark.RIGHT_THUMB
23 左臀 PoseLandmark.LEFT_HIP
24 右臀 PoseLandmark.RIGHT_HIP
25 左膝 PoseLandmark.LEFT_KNEE
26 右膝 PoseLandmark.RIGHT_KNEE
27 左踝 PoseLandmark.LEFT_ANKLE
28 右踝 PoseLandmark.RIGHT_ANKLE
29 左脚跟 PoseLandmark.LEFT_HEEL
30 右脚跟 PoseLandmark.RIGHT_HEEL
31 左脚趾 PoseLandmark.LEFT_FOOT_INDEX
32 右脚趾 PoseLandmark.RIGHT_FOOT_INDEX
新版 solution API，旧版 API 并不能检测多个姿态，新版 API 可以实现多个姿态检测。
姿态估计实例。
1.检测单人姿态
安装依赖。
pip install mediapipe
import cv2
import numpy as np
import mediapipe as mp
def main():
FILE_PATH = 'images/dance_girl_000.jpg'
img = cv2.imread(FILE_PATH)
mp_pose = mp.solutions.pose
pose = mp_pose.Pose(static_image_mode=True,
min_detection_confidence=0.5, min_tracking_confidence=0.5)
res = pose.process(img)
img_copy = img.copy()
if res.pose_landmarks is not None:
mp_drawing = mp.solutions.drawing_utils
# mp_drawing.draw_landmarks(
# img_copy, res.pose_landmarks, mp.solutions.pose.POSE_CONNECTIONS)
mp_drawing.draw_landmarks(
img_copy,
res.pose_landmarks,
mp_pose.POSE_CONNECTIONS, # frozenset，定义了哪些关键点要连接
mp_drawing.DrawingSpec(color=(255, 255, 255), # 姿态关键点
thickness=2,
circle_radius=2),
mp_drawing.DrawingSpec(color=(174, 139, 45), # 连线颜色
thickness=2,
circle_radius=2),
)
cv2.imshow('MediaPipe Pose Estimation', img_copy)
cv2.waitKey(0)
if __name__ == '__main__':
main()

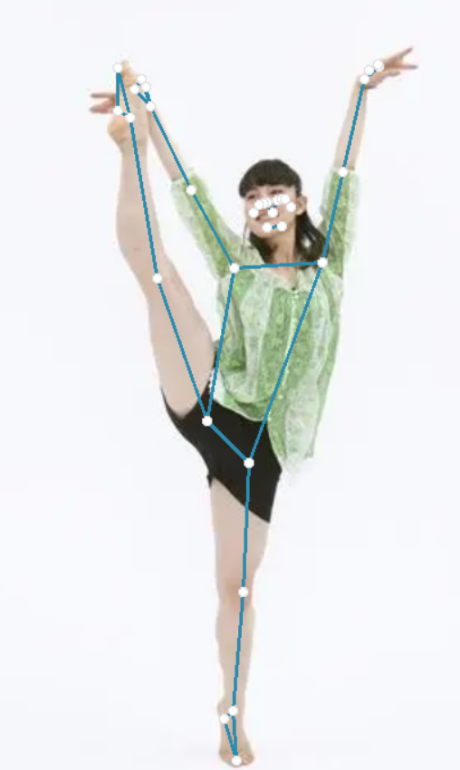

运行效果：
2.检测多人姿态
from mediapipe import solutions
from mediapipe.framework.formats import landmark_pb2
import cv2
import numpy as np
import mediapipe as mp
mp_drawing = mp.solutions.drawing_utils
mp_pose = mp.solutions.pose
def draw_landmarks_on_image(rgb_image, detection_result):
pose_landmarks_list = detection_result.pose_landmarks
annotated_image = np.copy(rgb_image)
# Loop through the detected poses to visualize.
for idx in range(len(pose_landmarks_list)):
pose_landmarks = pose_landmarks_list[idx]
# Draw the pose landmarks.
pose_landmarks_proto = landmark_pb2.NormalizedLandmarkList()
pose_landmarks_proto.landmark.extend([
landmark_pb2.NormalizedLandmark(x=landmark.x, y=landmark.y, z=landmark.z) for landmark in pose_landmarks
])
solutions.drawing_utils.draw_landmarks(
annotated_image,
pose_landmarks_proto,
solutions.pose.POSE_CONNECTIONS,
solutions.drawing_styles.get_default_pose_landmarks_style())
return annotated_image
#
'''
https://storage.googleapis.com/mediapipe-models/hand_landmarker/hand_landmarker/float16/latest/hand_landmarker.task.
'''
#
def newSolution():
BaseOptions = mp.tasks.BaseOptions
PoseLandmarker = mp.tasks.vision.PoseLandmarker
PoseLandmarkerOptions = mp.tasks.vision.PoseLandmarkerOptions
VisionRunningMode = mp.tasks.vision.RunningMode
model_path = 'model/pose_landmarker_heavy.task'
options = PoseLandmarkerOptions(
base_options=BaseOptions(model_asset_path=model_path),
running_mode=VisionRunningMode.IMAGE,
num_poses=10)
FILE_PATH = 'images/dance_girl_001.jpg'
image = cv2.imread(FILE_PATH)
img = mp.Image.create_from_file(FILE_PATH)
with PoseLandmarker.create_from_options(options) as detector:
res = detector.detect(img)
image = draw_landmarks_on_image(image, res)
cv2.imshow('MediaPipe Pose Estimation', image)
cv2.waitKey(0)
if __name__ == '__main__':

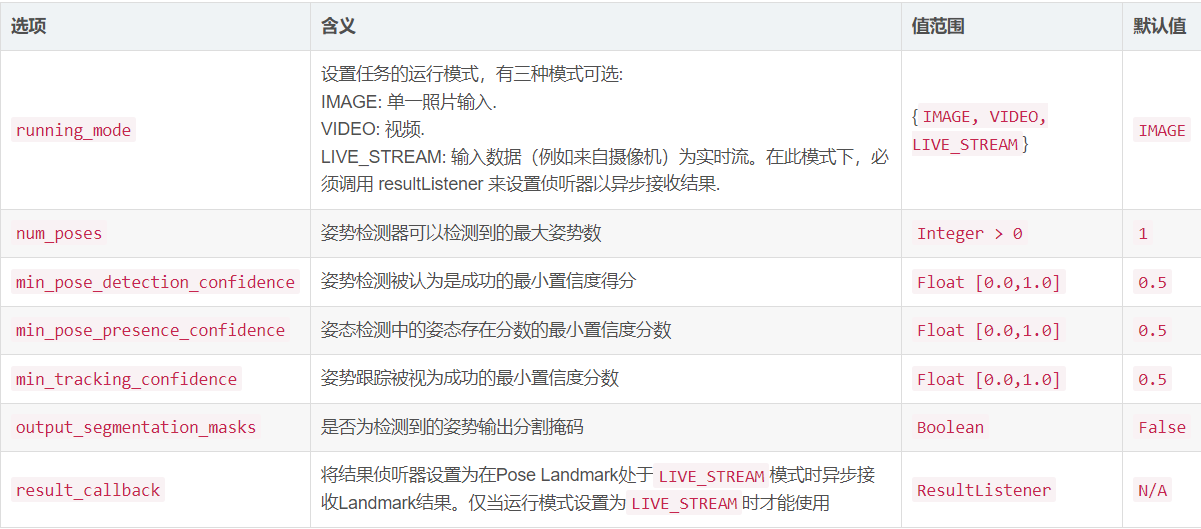

newSolution()

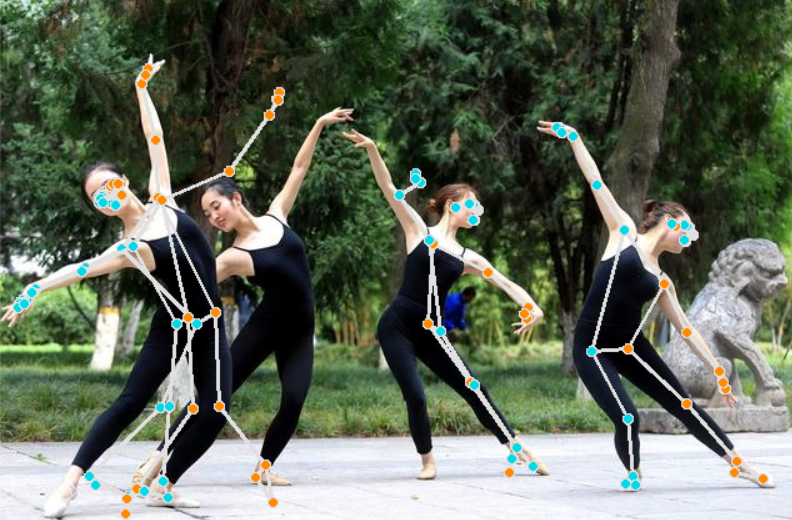

运行效果：
3.检测视频姿态
import cv2
import numpy as np
import mediapipe as mp
def video():
# 读取摄像头
# cap = cv2.VideoCapture(0)
# 读取视频
cap = cv2.VideoCapture('video/basketball_player_01.mp4')
mp_pose = mp.solutions.pose
pose = mp_pose.Pose(static_image_mode=False,
min_detection_confidence=0.5, min_tracking_confidence=0.5)
while cap.isOpened():
ret, frame = cap.read()
if not ret:
break
# 摄像头
# continue
# 将 BGR 图像转换为 RGB
rgb_frame = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
# 进行姿势估计
results = pose.process(rgb_frame)
if results.pose_landmarks is not None:
# 绘制关键点和连接线
mp_drawing = mp.solutions.drawing_utils
mp_drawing.draw_landmarks(
frame, results.pose_landmarks, mp_pose.POSE_CONNECTIONS)
# 显示结果
cv2.imshow('MediaPipe Pose Estimation', frame)
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源
cap.release()
cv2.destroyAllWindows()
if __name__ == '__main__':
video()

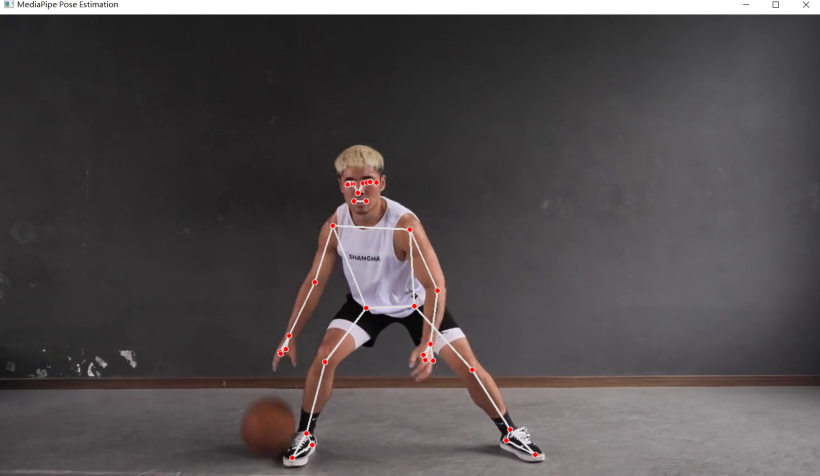

运行效果：
3.手部追踪

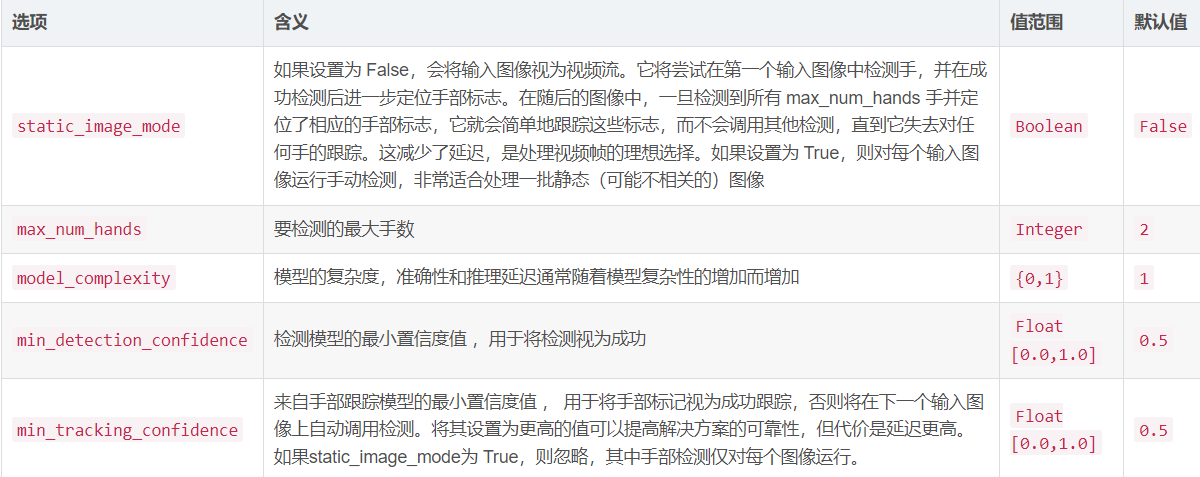

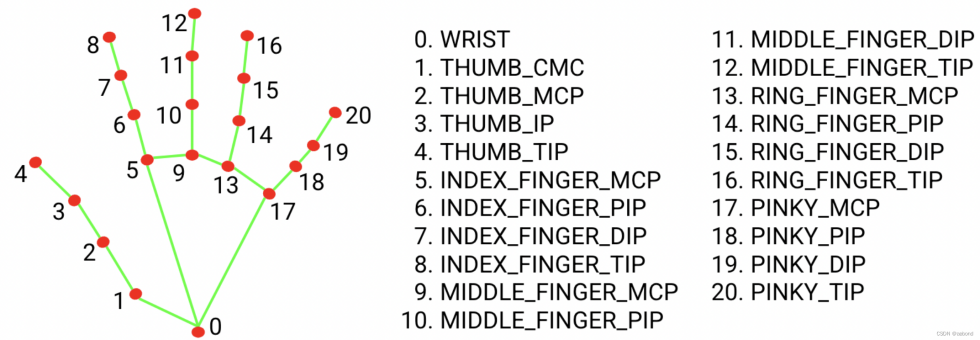

手部追踪 常用API使用见下表：
手部跟踪实例。
1.手部跟踪(图像)
import cv2
import mediapipe as mp
mp_hands = mp.solutions.hands
def main():
#cv2.namedWindow("MediaPipe Hand", cv2.WINDOW_NORMAL)
cv2.namedWindow("MediaPipe Hand", cv2.WINDOW_AUTOSIZE)
hands = mp_hands.Hands(static_image_mode=False, max_num_hands=2,
min_detection_confidence=0.5, min_tracking_confidence=0.5)
img = cv2.imread('images/hand003.jpg')
rgb_frame = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
# 进行手部追踪
results = hands.process(rgb_frame)
if results.multi_hand_landmarks:
# 绘制手部关键点和连接线
for hand_landmarks in results.multi_hand_landmarks:
mp_drawing = mp.solutions.drawing_utils
mp_drawing.draw_landmarks(
img, hand_landmarks, mp_hands.HAND_CONNECTIONS)
# 显示结果
cv2.imshow('MediaPipe Hand', img)
cv2.waitKey(0)
if __name__ == '__main__':
main()
运行效果：
2.手部跟踪(视频)
import cv2
import mediapipe as mp
mp_hands = mp.solutions.hands
def video():
hands = mp_hands.Hands(static_image_mode=False, max_num_hands=2,
min_detection_confidence=0.4, min_tracking_confidence=0.4)
# 读取视频
cap = cv2.VideoCapture('video/handguesture01.mp4')
while cap.isOpened():
ret, frame = cap.read()
if not ret:
break
# 将 BGR 图像转换为 RGB
rgb_frame = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
height, width = rgb_frame.shape[:2]
# 进行手部追踪
results = hands.process(rgb_frame)
if results.multi_hand_landmarks:
# 绘制手部关键点和连接线
for hand_landmarks in results.multi_hand_landmarks:
mp_drawing = mp.solutions.drawing_utils
mp_drawing.draw_landmarks(
frame, hand_landmarks, mp_hands.HAND_CONNECTIONS)
resized_frame = cv2.resize(frame, (int(width / 2), int(height / 2)), interpolation=cv2.INTER_AREA)
# 显示结果
cv2.imshow('MediaPipe Hand Tracking', resized_frame)
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源
cap.release()
cv2.destroyAllWindows()
if __name__ == '__main__':
video()

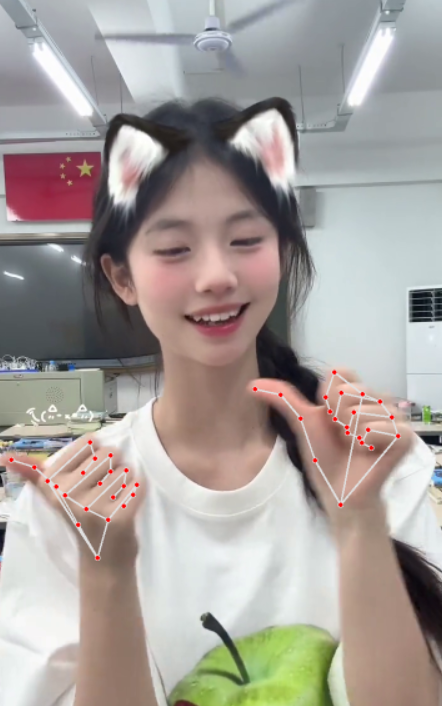

运行效果：
