DataStream API之Transformation。
1.Transformation

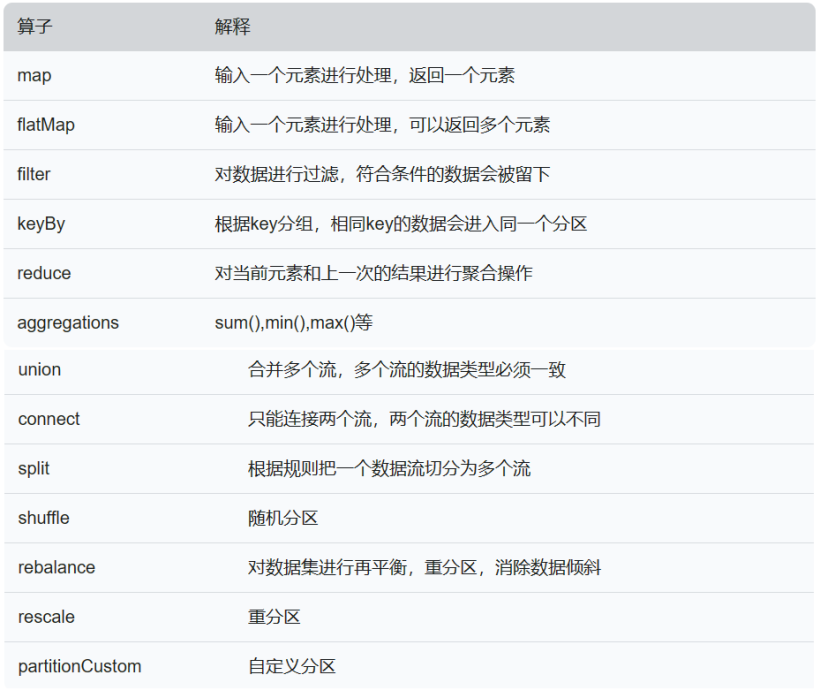

transformation是Flink程序的计算算子，负责对数据进行处理，Flink提供了大量的算子，其实Flink中的大部分算子的使用和spark中算子的使用是一样的，下面常用算子：
这些算子用法其实和spark中对应算子的用法基本是一致的，这里面的map、flatmap、keyBy、reduce、sum这些算子我们都用过了。union：表示合并多个流，但是多个流的数据类型必须一致。多个流join之后，就变成了一个流。
union的应用场景：多种数据源的数据类型一致，数据处理规则也一致。
union算子案例：
1).scala实现：
package com.simoniu.flink.scala.stream.transformation
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
/**
* 合并多个流，多个流的数据类型必须一致
* 应用场景：多种数据源的数据类型一致，数据处理规则也一致
* Created by simoniu
*/
object StreamUnionScalaDemo {
def main(args: Array[String]): Unit = {
val env = StreamExecutionEnvironment.getExecutionEnvironment
import org.apache.flink.api.scala._
//第1份数据流
val text1 = env.fromCollection(Array("java", "c", "html", "python", "c#"))
//第2份数据流
val text2 = env.fromCollection(Array("javascript", "go", "linux", "sql", "rust"))
//合并流
val unionStream = text1.union(text2)
//打印流中的数据
unionStream.print().setParallelism(1)
env.execute("StreamUnionScala")
}
}
运行结果：
java
c
html
python
c#
javascript
go
linux
sql
rust
2).java实现：
package com.simoniu.flink.java.stream.transformation;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import java.util.Arrays;
/**
* 合并多个流，多个流的数据类型必须一致
* 应用场景：多种数据源的数据类型一致，数据处理规则也一致
* Created by simoniu
*/
public class StreamUnionJavaDemo {
public static void main(String[] args) throws Exception{
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//第1份数据流
DataStreamSource<String> text1 = env.fromCollection(Arrays.asList("java", "c", "html", "python", "c#"));
//第2份数据流
DataStreamSource<String> text2 = env.fromCollection(Arrays.asList("javascript", "go", "linux", "sql", "rust"));
//合并流
DataStream<String> unionStream = text1.union(text2);
//打印流中的数据
unionStream.print().setParallelism(1);
env.execute("StreamUnionJava");
}
}
connect：只能连接两个流，两个流的数据类型可以不同。
connect算子案例：
1).scala实现：
package com.simoniu.flink.scala.stream.transformation
import org.apache.flink.streaming.api.functions.co.CoMapFunction
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
/**
* 只能连接两个流，两个流的数据类型可以不同
* 应用：可以将两种不同格式的数据统一成一种格式
* Created by simoniu
*/
object StreamConnectScalaDemo {
def main(args: Array[String]): Unit = {
val env = StreamExecutionEnvironment.getExecutionEnvironment
import org.apache.flink.api.scala._
//第1份数据流，属性使用空格分隔
val text1 = env.fromElements("name:tom gender:male age:18")
//第2份数据流，属性使用下划线分隔
val text2 = env.fromElements("name:jack_age:20")
//连接两个流
val connectStream = text1.connect(text2)
connectStream.map(new CoMapFunction[String, String, String] {
//处理第1份数据流中的数据
override def map1(value: String): String = {
value.replace(" ", ",")
}
//处理第2份数据流中的数据
override def map2(value: String): String = {
value.replace("_", ",")
}
}).print().setParallelism(1)
env.execute("StreamConnectScala")
}
}
运行结果：
name:tom,gender:male,age:18
name:jack,age:20
2).java实现：
package com.simoniu.flink.java.stream.transformation;
import org.apache.flink.streaming.api.datastream.ConnectedStreams;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.CoMapFunction;
import java.util.Arrays;
/**
* 只能连接两个流，两个流的数据类型可以不同
* Created by simoniu
*/
public class StreamConnectJavaDemo {
public static void main(String[] args) throws Exception{
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//第1份数据流
DataStreamSource<String> text1 = env.fromElements("name:tom gender:male age:18");
//第2份数据流
DataStreamSource<String> text2 = env.fromElements("name:jack_age:20");
//连接两个流
ConnectedStreams<String, String> connectStream = text1.connect(text2);
connectStream.map(new CoMapFunction<String, String, String>() {
//处理第1份数据流中的数据
@Override
public String map1(String value) throws Exception {
return value.replace(" ",",");
}
//处理第2份数据流中的数据
@Override
public String map2(String value) throws Exception {
return value.replace("_",",");
}
}).print().setParallelism(1);
env.execute("StreamConnectJava");
}
}
split：根据规则把一个数据流切分为多个流。注意：split只能分一次流，切分出来的流不能继续分流。
split需要和select配合使用，选择切分后的流。应用场景：将一份数据流切分为多份，便于针对每一份数据使用不同的处理逻辑。
split算子案例：
1).scala实现：
package com.simoniu.flink.scala.stream.transformation
import java.{lang, util}
import org.apache.flink.streaming.api.collector.selector.OutputSelector
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
/**
* 根据规则把一个数据流切分为多个流
* 注意：split只能分一次流，切分出来的流不能继续分流
* split需要和select配合使用，选择切分后的流
* 应用场景：将一份数据流切分为多份，便于针对每一份数据使用不同的处理逻辑
* Created by simoniu
*/
object StreamSplitScalaDemo {
def main(args: Array[String]): Unit = {
val env = StreamExecutionEnvironment.getExecutionEnvironment
import org.apache.flink.api.scala._
val text = env.fromCollection(Array(1, 2, 3, 4, 5, 6, 7, 8, 9, 10))
//按照数据的奇偶性对数据进行分流
val splitStream = text.split(new OutputSelector[Int] {
override def select(value: Int): lang.Iterable[String] = {
val list = new util.ArrayList[String]()
if(value % 2 == 0){
list.add("even")//偶数
}else{
list.add("odd")//奇数
}
list
}
})
//选择流
val evenStream = splitStream.select("even")
evenStream.print().setParallelism(1)
//二次切分流会报错
//Consecutive multiple splits are not supported. Splits are deprecated. Please use side-outputs
/*val lowHighStream = evenStream.split(new OutputSelector[Int] {
override def select(value: Int): lang.Iterable[String] = {
val list = new util.ArrayList[String]()
if(value <= 5){
list.add("low");
}else{
list.add("high")
}
list
}
})
val lowStream = lowHighStream.select("low")
lowStream.print().setParallelism(1)*/
env.execute("StreamSplitScala")
}
}
运行结果：
2
4
6
8
10
2).java实现
package com.simoniu.flink.java.stream.transformation;
import org.apache.flink.streaming.api.collector.selector.OutputSelector;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SplitStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import java.util.ArrayList;
import java.util.Arrays;
/**
* 根据规则把一个数据流切分为多个流
* 注意：split只能分一次流，切分出来的流不能继续分流
* split需要和select配合使用，选择切分后的流
* 应用场景：将一份数据流切分为多份，便于针对每一份数据使用不同的处理逻辑
* Created by simoniu
*/
public class StreamSplitJavaDemo {
public static void main(String[] args) throws Exception{
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStreamSource<Integer> text = env.fromCollection(Arrays.asList(1, 2, 3, 4, 5, 6, 7, 8, 9, 10));
//按照数据的奇偶性对数据进行分流
SplitStream<Integer> splitStream = text.split(new OutputSelector<Integer>() {
@Override
public Iterable<String> select(Integer value) {
ArrayList<String> list = new ArrayList<>();
if (value % 2 == 0) {
list.add("even");//偶数
} else {
list.add("odd");//奇数
}
return list;
}
});
//选择流
DataStream<Integer> evenStream = splitStream.select("even");
evenStream.print().setParallelism(1);
env.execute("StreamSplitJava");
}
}
目前split切分的流无法进行二次切分，并且split方法已经标记为过时了，官方不推荐使用，现在官方推荐使用side output的方式实现。
side output实现流的多次切分案例：
1).scala实现
package com.simoniu.flink.scala.stream.transformation
import java.{lang, util}
import org.apache.flink.streaming.api.collector.selector.OutputSelector
import org.apache.flink.streaming.api.functions.ProcessFunction
import org.apache.flink.streaming.api.scala.{OutputTag, StreamExecutionEnvironment}
import org.apache.flink.util.Collector
/**
* 使用sideoutput切分流
* Created by simoniu
*/
object StreamSideOutputScalaDemo {
def main(args: Array[String]): Unit = {
val env = StreamExecutionEnvironment.getExecutionEnvironment
import org.apache.flink.api.scala._
val text = env.fromCollection(Array(1, 2, 3, 4, 5, 6, 7, 8, 9, 10))
//按照数据的奇偶性对数据进行分流
//首先定义两个sideoutput来准备保存切分出来的数据
val outputTag1 = new OutputTag[Int]("even") {} //保存偶数
val outputTag2 = new OutputTag[Int]("odd") {} //保存奇数
//注意：process属于Flink中的低级api
val outputStream = text.process(new ProcessFunction[Int, Int] {
override def processElement(value: Int, ctx: ProcessFunction[Int, Int]#Context, out: Collector[Int]): Unit = {
if (value % 2 == 0) {
ctx.output(outputTag1, value)
} else {
ctx.output(outputTag2, value)
}
}
})
//获取偶数数据流
val evenStream = outputStream.getSideOutput(outputTag1)
//获取奇数数据流
val oddStream = outputStream.getSideOutput(outputTag2)
//evenStream.print().setParallelism(1)
//对evenStream流进行二次切分
val outputTag11 = new OutputTag[Int]("low") {} //保存小于等五5的数字
val outputTag12 = new OutputTag[Int]("high") {} //保存大于5的数字
val subOutputStream = evenStream.process(new ProcessFunction[Int, Int] {
override def processElement(value: Int, ctx: ProcessFunction[Int, Int]#Context, out: Collector[Int]): Unit = {
if (value <= 5) {
ctx.output(outputTag11, value)
} else {
ctx.output(outputTag12, value)
}
}
})
//获取小于等于5的数据流
val lowStream = subOutputStream.getSideOutput(outputTag11)
//获取大于5的数据流
val highStream = subOutputStream.getSideOutput(outputTag12)
lowStream.print("low=>").setParallelism(1)
highStream.print("high=>").setParallelism(1)
env.execute("StreamSideOutputScala")
}
}
运行结果：
low=>> 2
high=>> 8
low=>> 4
high=>> 6
high=>> 10
2).java实现
package com.simoniu.flink.java.stream.transformation;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.util.Collector;
import org.apache.flink.util.OutputTag;
import java.util.Arrays;
/**
* 使用sideoutput切分流
* Created by simoniu
*/
public class StreamSideoutputJavaDemo {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStreamSource<Integer> text = env.fromCollection(Arrays.asList(1, 2, 3, 4, 5, 6, 7, 8, 9, 10));
//按照数据的奇偶性对数据进行分流
//首先定义两个sideoutput来准备保存切分出来的数据
OutputTag<Integer> outputTag1 = new OutputTag<Integer>("even") {
};
OutputTag<Integer> outputTag2 = new OutputTag<Integer>("odd") {
};
SingleOutputStreamOperator<Integer> outputStream = text.process(new ProcessFunction<Integer, Integer>() {
@Override
public void processElement(Integer value, Context ctx, Collector<Integer> out)
throws Exception {
if (value % 2 == 0) {
ctx.output(outputTag1, value);
} else {
ctx.output(outputTag2, value);
}
}
});
//获取偶数数据流
DataStream<Integer> evenStream = outputStream.getSideOutput(outputTag1);
//获取奇数数据流
DataStream<Integer> oddStream = outputStream.getSideOutput(outputTag2);
//对evenStream流进行二次切分
OutputTag<Integer> outputTag11 = new OutputTag<Integer>("low") {
};
OutputTag<Integer> outputTag12 = new OutputTag<Integer>("high") {
};
SingleOutputStreamOperator<Integer> subOutputStream = evenStream.process(new ProcessFunction<Integer, Integer>() {
@Override
public void processElement(Integer value, Context ctx, Collector<Integer> out)
throws Exception {
if (value <= 5) {
ctx.output(outputTag11, value);
} else {
ctx.output(outputTag12, value);
}
}
});
//获取小于等于5的数据流
DataStream<Integer> lowStream = subOutputStream.getSideOutput(outputTag11);
//获取大于5的数据流
DataStream<Integer> highStream = subOutputStream.getSideOutput(outputTag12);
lowStream.print("low=>").setParallelism(1);
highStream.print("high=>").setParallelism(1);
env.execute("StreamSideoutputJava");
}
}

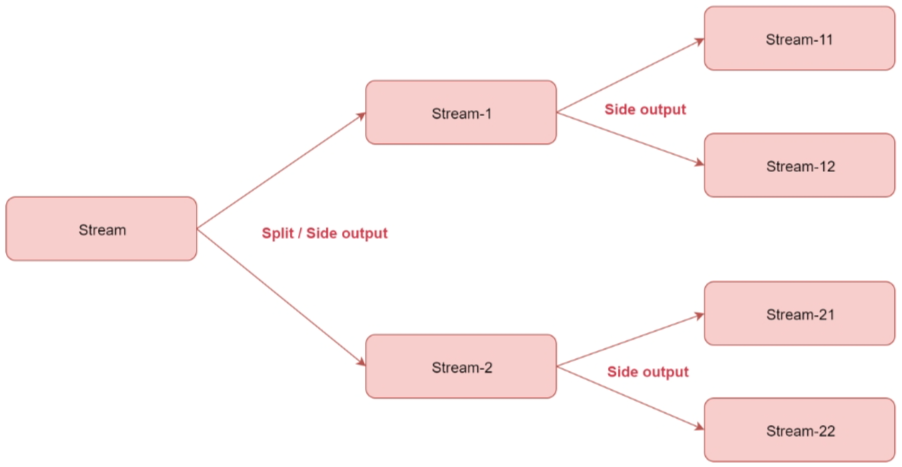

其实想要实现多级流切分，使用filter算子也可以实现。

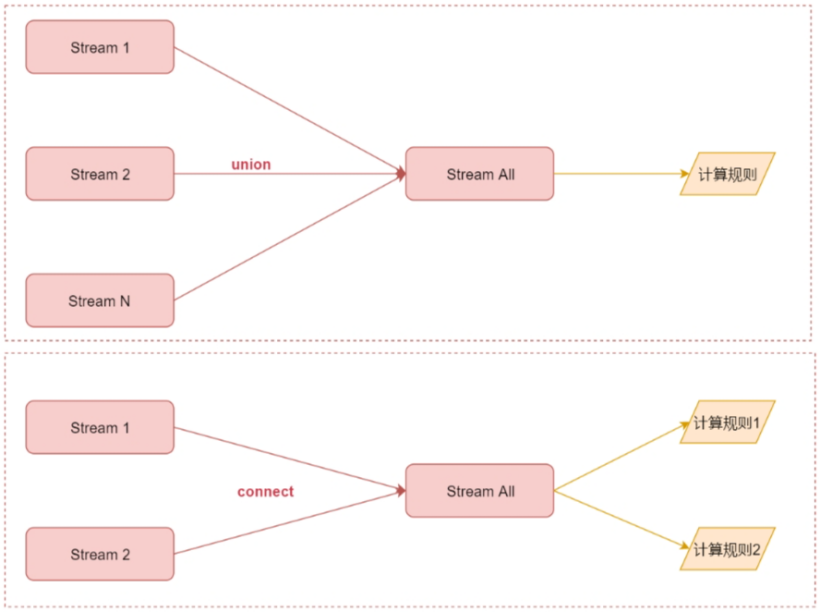

以上算子总结如下：
union可以连接多个流，最后汇总成一个流，流里面的数据使用相同的计算规则 connect值可以连接2个流，最后汇总成一个流，但是流里面的两份数据相互还是独立的，每一份数据使用一个计算规则。
如果是只需要切分一次的话使用split或者side output都可以，如果想要切分多次，就不能使用split了，需要使用side output。
