Echarts+china.js实现中国地图

ECharts是一款基于JavaScript的数据可视化图表库，提供直观，生动，可交互，可个性化定制的数据可视化图表。ECharts最初由百度团队开源，并于2018年初捐赠给Apache基金会，成为ASF孵化级项目。
1.Echarts+china.js实现中国地图
<!DOCTYPE html>
<html>
<head>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no"/>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title>echarts</title>
    <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@5.4.2/dist/echarts.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/echarts-map-chinajs@1.0.2/china.min.js" type="text/javascript"
            charset="utf-8"></script>
    <style type="text/css">
        html {
            height: 100%
        }

        body {
            height: 100%;
            margin: 0px;
            padding: 0px
        }

        #container {
            height: 80%
        }
    </style>
</head>
<body>
<div id="container"></div>
<script type="text/javascript">
    function randomData() {
        return Math.round(Math.random() * 1000);
    }

    let mydata = [
        {name: '北京', value: '100'}, {name: '天津', value: randomData()},
        {name: '上海', value: randomData()}, {name: '重庆', value: randomData()},
        {name: '河北', value: randomData()}, {name: '河南', value: randomData()},
        {name: '云南', value: randomData()}, {name: '辽宁', value: randomData()},
        {name: '黑龙江', value: randomData()}, {name: '湖南', value: randomData()},
        {name: '安徽', value: randomData()}, {name: '山东', value: randomData()},
        {name: '新疆', value: randomData()}, {name: '江苏', value: randomData()},
        {name: '浙江', value: randomData()}, {name: '江西', value: randomData()},
        {name: '湖北', value: randomData()}, {name: '广西', value: randomData()},
        {name: '甘肃', value: randomData()}, {name: '山西', value: randomData()},
        {name: '内蒙古', value: randomData()}, {name: '陕西', value: randomData()},
        {name: '吉林', value: randomData()}, {name: '福建', value: randomData()},
        {name: '贵州', value: randomData()}, {name: '广东', value: randomData()},
        {name: '青海', value: randomData()}, {name: '西藏', value: randomData()},
        {name: '四川', value: randomData()}, {name: '宁夏', value: randomData()},
        {name: '海南', value: randomData()}, {name: '台湾', value: randomData()},
        {name: '香港', value: randomData()}, {name: '澳门', value: randomData()}
    ];

    let optionMap = {
        backgroundColor: '#FFFFFF',
        title: {
            text: '全国地图大数据',
            subtext: '',
            x: 'center'
        },
        tooltip: {
            trigger: 'item'
        },

        //左侧小导航图标
        visualMap: {
            show: true,
            x: 'left',
            y: 'center',
            splitList: [
                {start: 600, end: 1000},
                {start: 500, end: 600}, {start: 400, end: 500},
                {start: 300, end: 400}, {start: 200, end: 300},
                {start: 100, end: 200}, {start: 0, end: 100},
            ],
            color: ['#003a6c', '#5475f5', '#9feaa5', '#85daef', '#74e2ca', '#e6ac53', '#9fb5ea']
        },
        //配置属性
        series: [{
            name: '数据',
            type: 'map',
            mapType: 'china',
            roam: true,
            label: {
                normal: {
                    show: true  //省份名称
                },
                emphasis: {
                    show: false
                }
            },
            data: mydata  //数据
        }]
    };
    //初始化echarts实例
    let myChart = echarts.init(document.getElementById('container'));

    //使用制定的配置项和数据显示图表
    myChart.setOption(optionMap);


</script>
</body>
</html>

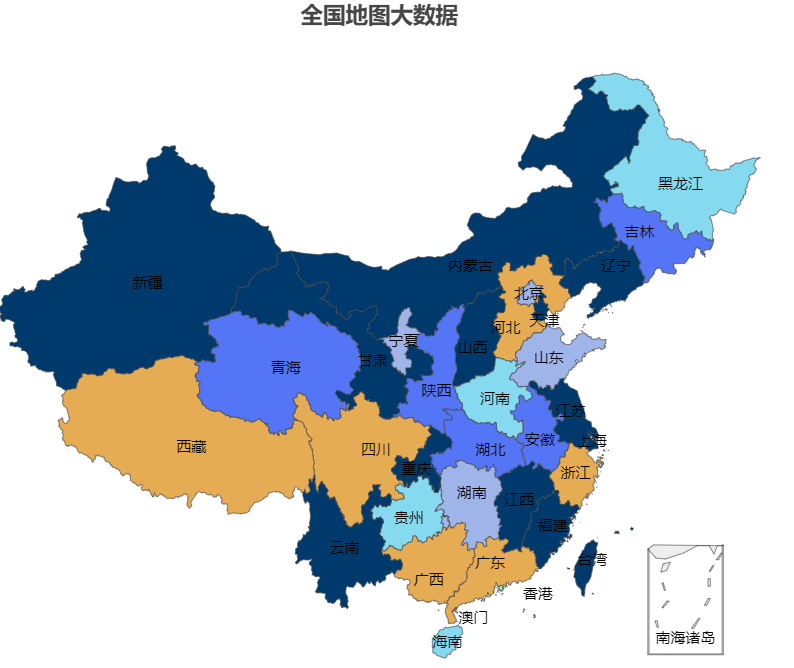

运行效果：
